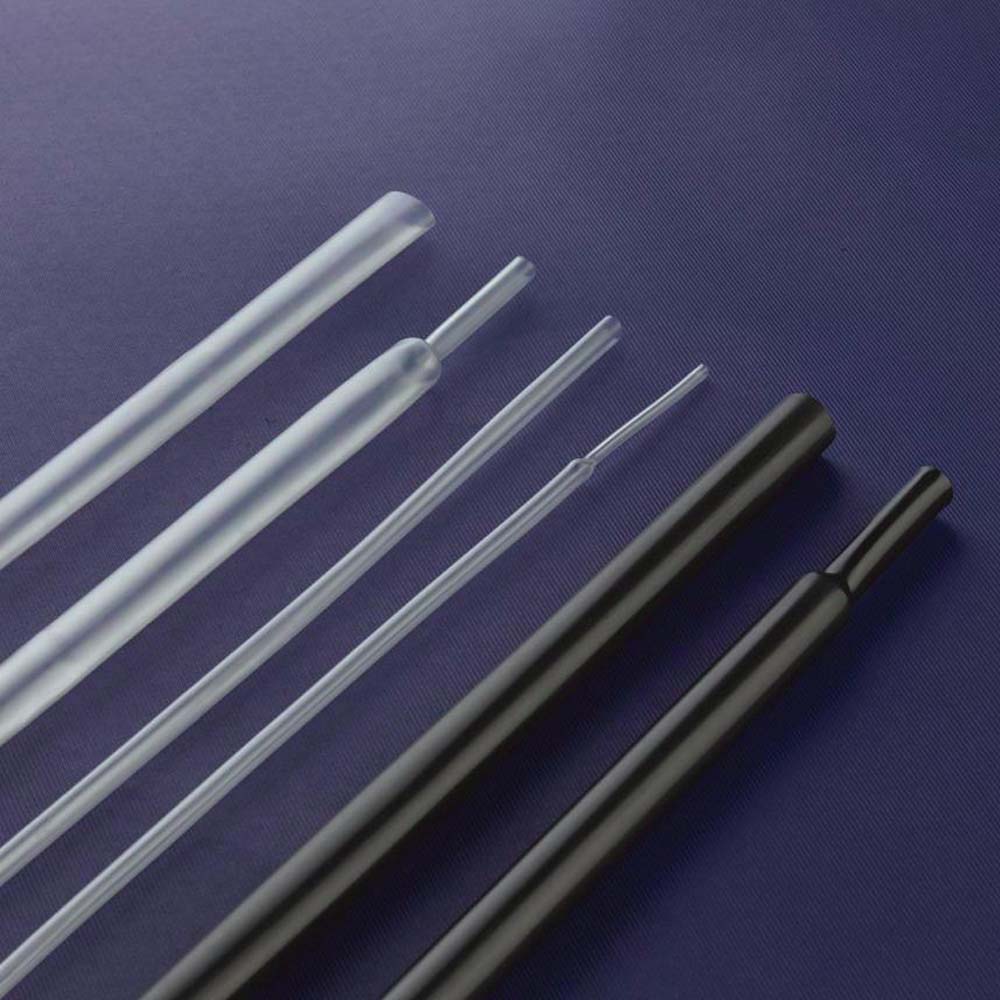

●√General purpose polyolefin tubing.

●√Operating temperature: -55°C to + 105°C
●√Minimum shrink temperature: 80°C
●√Minimum fully recovery temperature: 100°C
●√Standard colors:
●√Shiny-black, crystal-clear. Other colors available on request

Technical Data

Property	Test Method	Typical Data
Operating temperature	UL 224	-55°C to + 105°C
Tensile strength	ASTM D 2671	>10.4 MPa
Elongation at break	ASTM D 2671	>500%
Longitudinal shrinkage	UL 224	0±5%
Eccentricity	ASTM D 2671	<30%
Flammability	-	Flammable
Dielectric strength	IEC 93	>25 KV/mm
Volume resistance	ASTM D 2671	10 14 Ω.cm
Copper stability	ISO 62	Pass

Dimensions

Size	As Supplied (mm)		After Recovery (mm)		Standard length m/spool
DM-T105 Inch.(D)	Inside Diameter Min. (D)	Wall Thickness Nominal. (T)	Inside Diameter Max. (d)	Wall Thickness nominal. (t)
3/64	≥1.2	0.18	0.6	0.3	200
1/16	≥1.6	0.18	0.8	0.33	200
3/32	≥2.4	0.25	1.2	0.36	200
1/8	≥3.2	0.25	1.6	0.44	200
3/16	≥4.8	0.25	2.4	0.55	200
1/4	≥6.4	0.25	3.2	0.55	200
3/8	≥9.5	0.3	4.8	0.55	100
1/2	≥12.7	0.35	6.4	0.65	100
5/8	≥16	0.35	8	0.69	100
3/4	≥19.1	0.4	9.5	0.89	100
1	≥25.4	0.45	12.7	0.9	50
1 1/4	≥32	0.45	16	0.9	50
1 1/2	≥38.1	0.5	19.1	1	50
2	≥50.8	0.5	25.4	1	25
3	≥76.2	0.55	38.1	1.2	25
4	≥100	0.55	50.8	1.3	25
5	≥120	0.55	63	1.4	25
6	≥150	0.55	75	1.4	25
7	≥180	0.55	90	1.4	25
