PTFE heat shrink tubing with FEP
2020/10/30 viewers
- BrandDEEM
- TypeDM-TFE (FEP)
Introduction

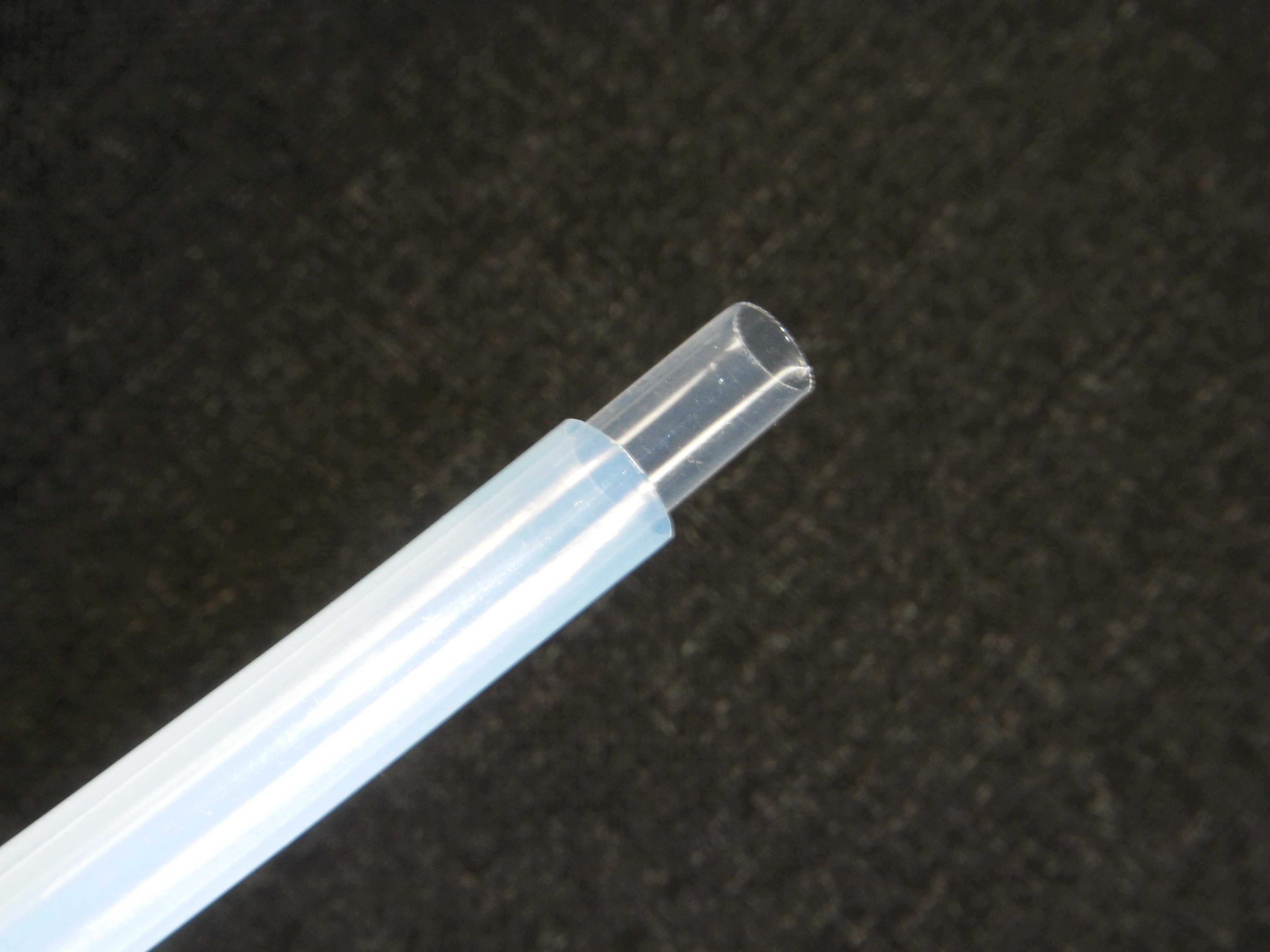

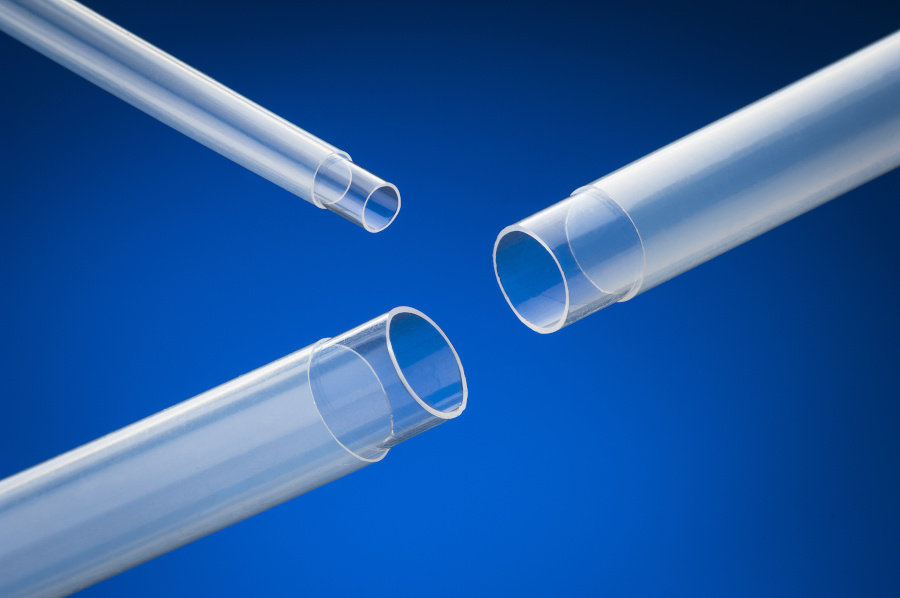

●√ApplicationsHigh performance, highly flame retardant, modified polytetrafluorethylene
(PTFE) heat shrink tubing with a fusible, fluorinated ethylene propylene
(FEP) inner sleeve.
Suitable for high end, critical applications, typically for splice protection in
the aerospace, military and medical sectors.
●√Features:
High temperature performance, an excellent resistance to chemical
and outstanding encapsulation properties.
●√Various
Standard color: Natural. Other colors available on request.
Technical Data
| Property | Test Method | Typical Data | |
| Physical Chemical | Working temperature | - | -200°C to + 205°C |
| Withstand peak temperatures (short periods) | - | + 400°C | |
| Flammability | UL94 V0 | Pass | |
| Electrical | Dielectric strength | ASTM D149 | ≥7.4KV/mm |
| Volume resistivity | ASTM D257 | ≥10 14 Ω.cm | |
| Chemical | Resistivity | - | Inert |
Dimensions
| Size As Supplied (mm) | Size After Recovery (mm) |
Standard length m/spool |
|
|
Inside Diameter Min. (D) |
Inside Diameter Max. (d) |
Wall Thickness, (t) | |
| 1 | 0 | N/A | 1.2 |
| 1.5 | 0 | N/A | 1.2 |
| 3 | 0 | N/A | 1.2 |
| 4 | 0 | N/A | 1.2 |
| 4.8 | 1.57 | 0.89 | 1.2 |
| 6.4 | 3.18 | 0.89 | 1.2 |
| 9 | 4.83 | 0.89 | 1.2 |
| 11 | 7.92 | 1.4 | 1.2 |
| 18 | 11.18 | 1.4 | 1.2 |
| 24 | 16 | 1.65 | 1.2 |
Spools as standards. 1 m. or 1,22 m. sticks, special spool lengths or cut pieces available on request
