Applications
Can be used for jacketing and bundling of wires to form light-duty harnesses, where low profile,
abrasion resistance, and flexibility are required. It reliably protect wires, solder joints terminals,
connections from most industrial fluid solvents and fluid chemicals.

Features
High flame resistance.
Excellent physical and electrical properties after
exposure to many chemicals and solvents.

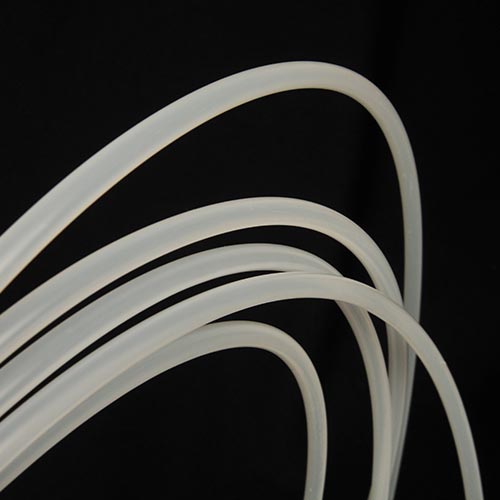

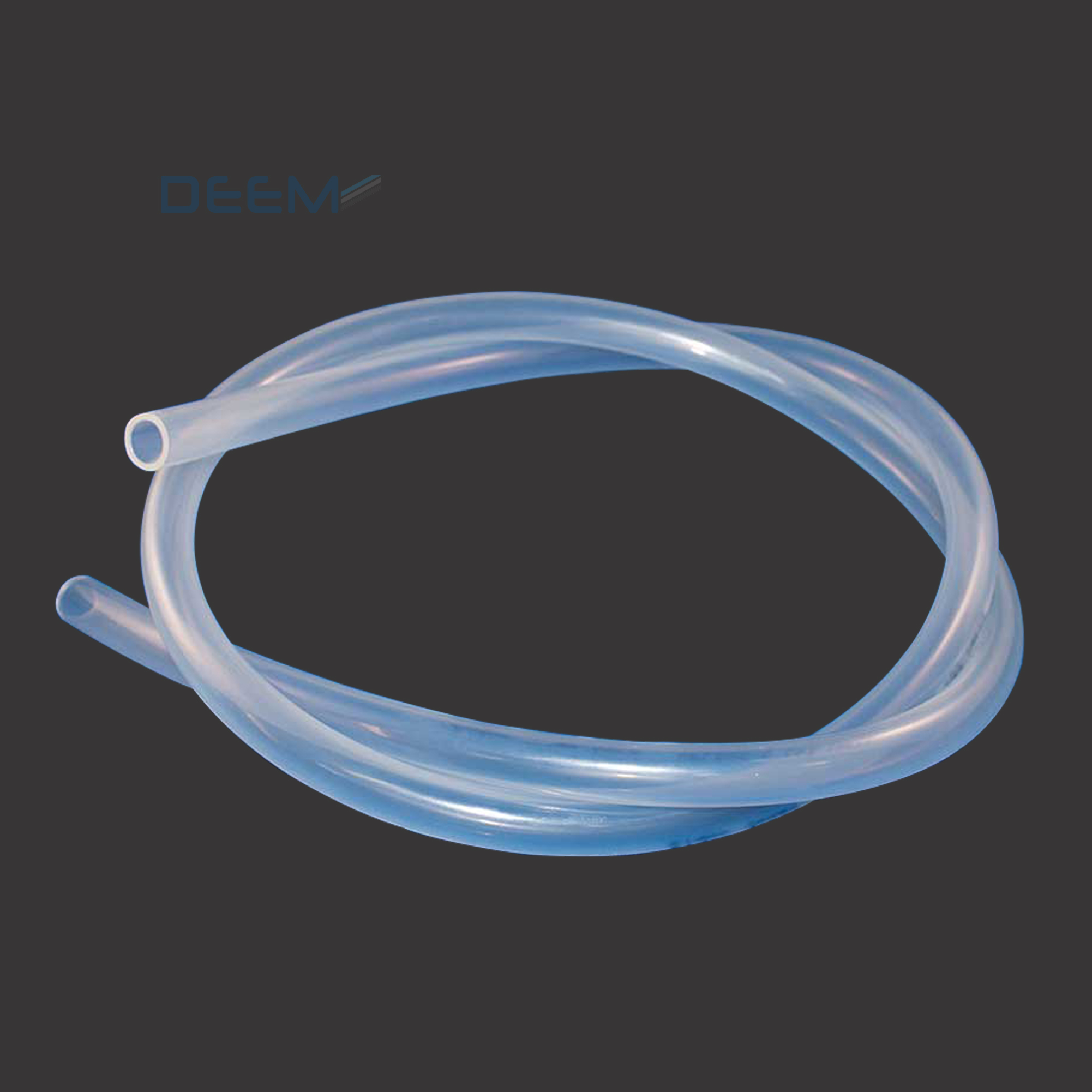

Excellent transparency on clear version.

Various
Operating temperature: -55°C to +150°C (175°C)
Standard color: Shiny black, crystal clear, other colors on request.

Technical Data

Property	Test Method	Typical Data
Operating temperature	IEC 216	-55C to +150°C(175℃)
Tensile strength	ASTM D 2671	≥30 MPa
Elongation at break	ASTM D 2671	≥150%
Elongation at break after aging	180°C/168hrs	≥100%
Heat shock	250°C/4 hrs.	No cracking
Cold bend	-55°C/4 hrs.	No cracking
Flammability	VW-1	Pass
Yolume resistance	IEC 93	≥1014Ω.cm
Copper corrosion	180℃/168hrs.	No corrosion
Copper stability	180C/168hrs.	No sign of degradation

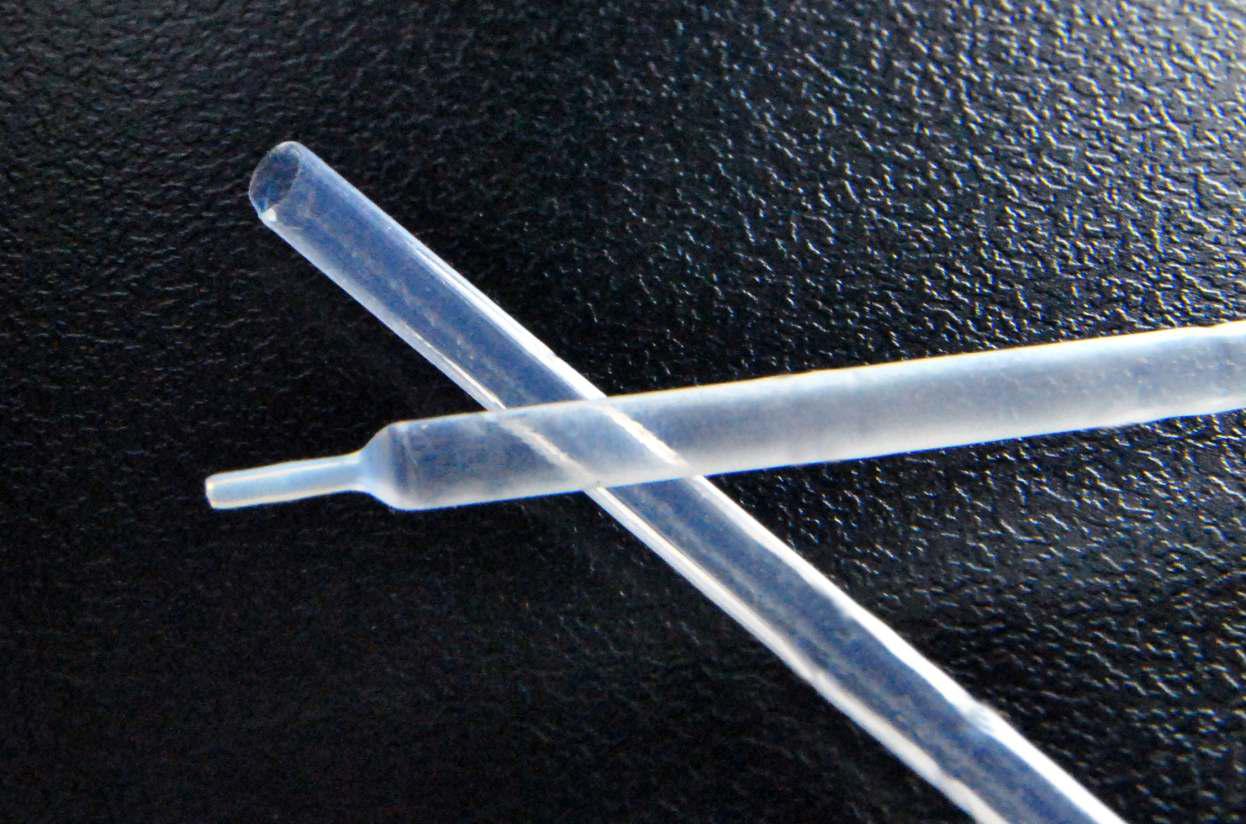

Dimensions

size	As Supplied(mm)	After Recovery(mm)		Tube Shape	Standard length m/spool
DM-KY Inch. (D)	Inside Diameter Min. (D)	Inside Diameter Max. (d)	Wall Thickness Nominal. (t)
3/64	1.2	0.6	0.26	0	200
1/16	1.6	0.8	0.26	0	200
3/32	2.4	1.2	0.26	0	200
1/8	3.2	1.6	0.26	0	100
3/16	4.8	2.4	0.26	0	100
1/4	6.4	3.2	0.26	0	100
3/8	9.5	4.8	0.30	-	50
1/2	12.7	6.4	0.30	-	50
3/4	19.1	9.5	0.41	-	50
1	25.4	12.7	0.41	-	50
11/2	38.1	19.1	0.51	-	50

* Tube shape "o": Round shape or OvalFlat shape
*Spools as standards. 1 m. or 1,22 m. sticks, special spool lengths or cut pieces available on request.
