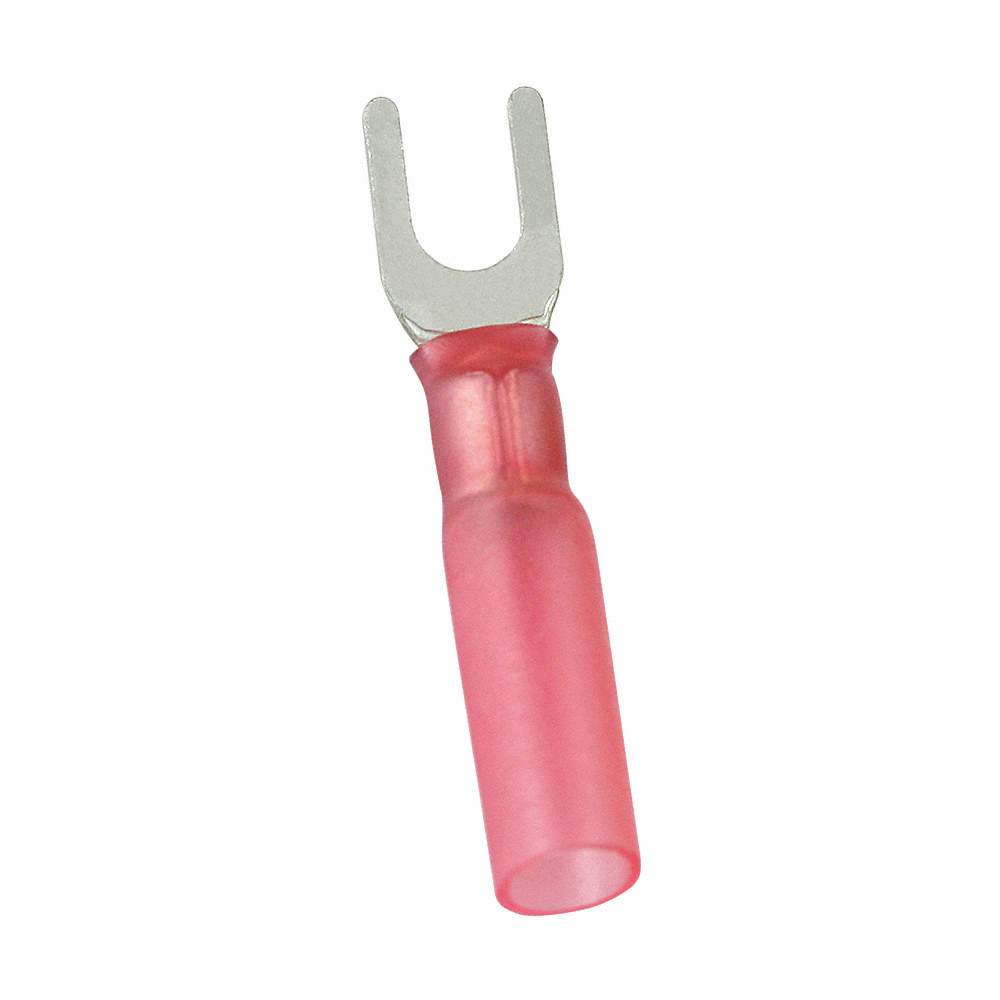

Heat shrink half insulated fork terminals
2024/7/26 viewers
- BrandDEEM
- TypeDC-SC(Y)
Introduction

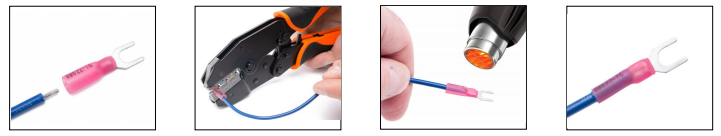

Applications
Heat Shrinkable terminals provide a permanent environmental seal,
the polymer used in the production of the heat shrink tube is
Specially adapted to be sealed. Ideal for electrical equipment
repairs, maintenance and outdoor electrical cabling.

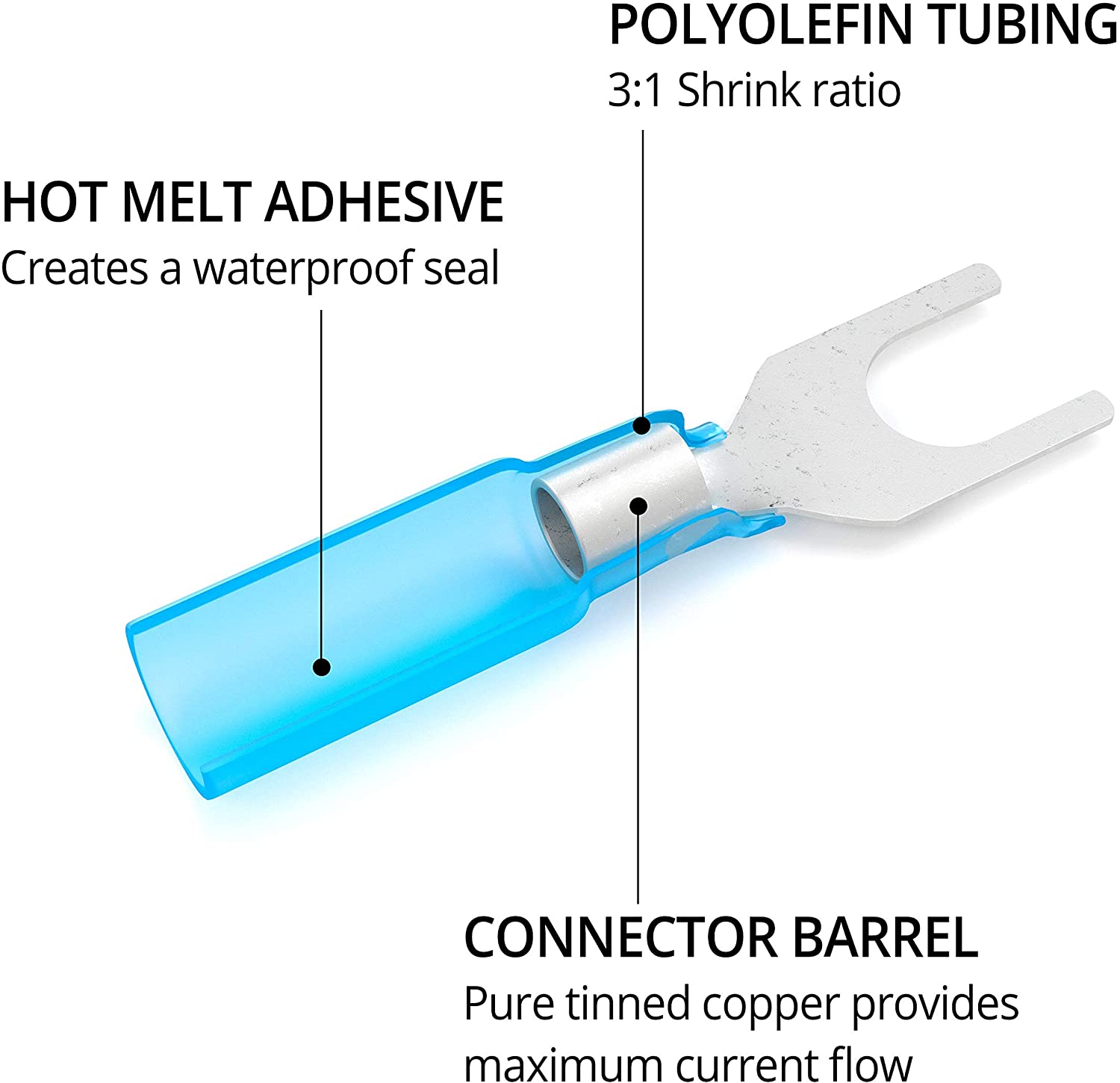

Features
1. Maximum Electric Rating： 150 °C 600V
2. Maximum Electric Current:
22-16AWG/0.5-1.5mm2: 19A;
16-14AWG/1.5-2.5 mm2: 27A;
12-10AWG/4-6mm2: 48A
3. Terminal Body: Brass
4. Insulation: Heat Shrink Tube
5. Plating: Tin

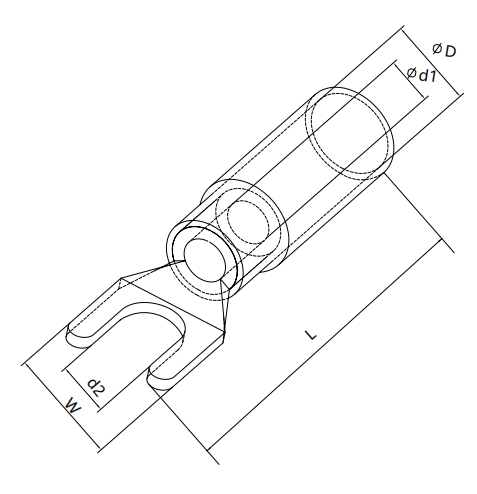

Dimensions
|
Wire Range
mm²/Awg
|
Tab Size mm | d2 | d1 | W |
Tube length
|
D | L | Color |
|
0.5~1.5mm²
22-16AWG
|
#4 | 3.2 | 1.7 | 5.7 | 23 | 4.8 | 33 | Red |
| #6 | 3.7 | 5.7 | 33 | |||||
| #8 | 4.3 | 6.4 | 33 | |||||
| #10 | 5.3 | 8.1 | 33 | |||||
| 1/4 | 6.4 | 12 | 35 | |||||
|
1.5~2.5mm²
16-14AWG
|
#4 | 3.2 | 2.3 | 5.7 | 23 | 5.8 | 33 | Blue |
| #6 | 3.7 | 5.7 | 33 | |||||
| #8 | 4.3 | 6.4 | 33 | |||||
| #10 | 5.3 | 8.1 | 33 | |||||
| 1/4 | 6.4 | 12 | 35 | |||||
|
4~6mm²
12-10AWG
|
#6 | 3.7 | 3.4 | 8.3 | 23 | 6.8 | 35 | Yellow |
| #8 | 4.3 | 8.3 | 35 | |||||
| #10 | 5.3 | 9 | 35 | |||||
| 1/4 | 6.4 | 12 | 39 |
