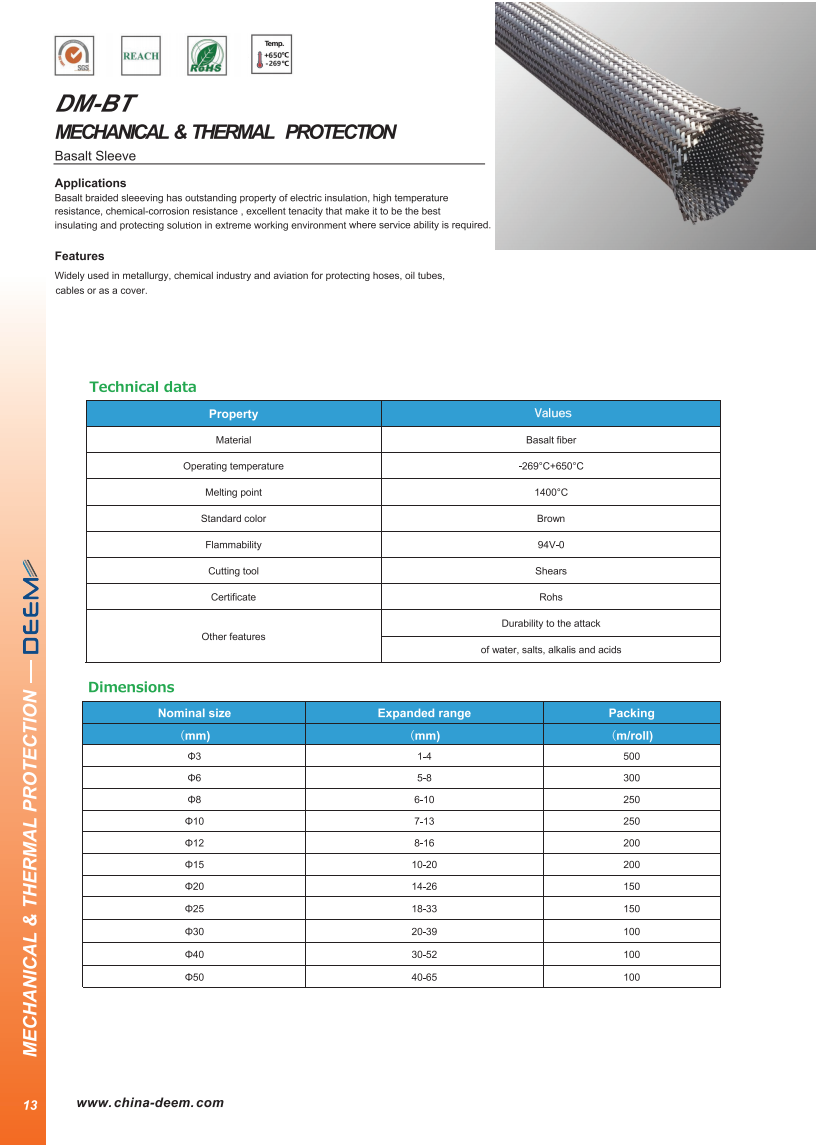

Applications
Basalt braided sleeeving has outstanding property of electric insulation, high temperature resistance, chemical-corrosion resistance , excellent tenacity that make it to be the best insulating and protecting solution in extreme working environment where service ability is required.
Features

Widely used in metallurgy, chemical industry and aviation for protecting hoses, oil tubes, cables or as a cover.

Technical Data

Property	Values
Material	Basalt fiber
Operating temperature	-269°C+650℃
Melting point	1400℃
Standard color	Brown
Flammability	94V-0
Cutting tool	Shears
Certificate	Rohs
Other features	Durability to the attack of  water, salts, alkalis and acids

Dimensions

Nominal size	Expanded range	Packing
(mm)	(mm)	(m/roll)
Φ3	1-4	500
Φ6	5-8	300
Φ8	6-10	250
Φ10	7-13	250
Φ12	8-16	200
Φ15	10-20	200
Φ20	14-26	150
Φ25	18-33	150
Φ30	20-39	100
Φ40	30-52	100
Φ50	40-65	100
