Applications
Heat Shrinkable terminals provide a permanent environmental seal, the polymer used in the production of the heat shrink tube is
Specially adapted to be sealed. Ideal for electrical equipment repairs, maintenance and outdoor electrical cabling.
Features
1. Maximum Electric Rating： 150 °C 600V
2. Maximum Electric Current：
22-16 AWG/0.5-1.5mm2： 19A：
16-14AWG/1.5-2.5 mm2： 27A；
12-10AWG/4-6mm2： 48A

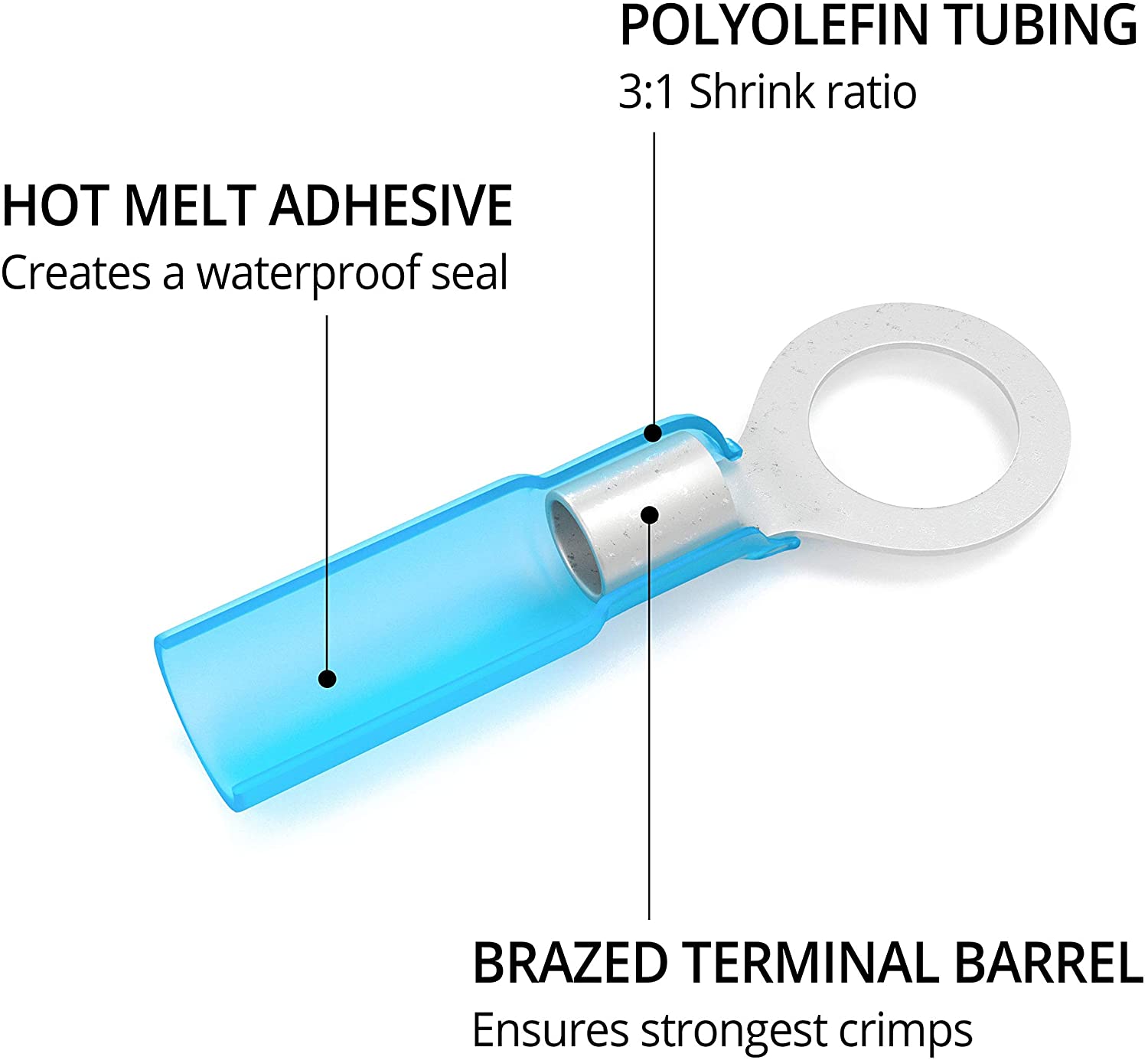

Terminal Body： Brass
Insulation： Heat Shrink Tube
Plating； Tin

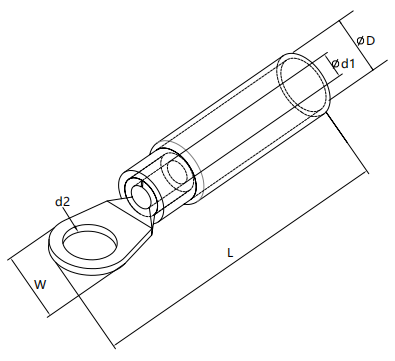

Dimensions

Wire Range mm²/Awg	Tab Size mm	d2	d1	W	Tube length	D	L	Color
0.5~1.5mm²    22-16AWG	#4	3.2	1.7	5.7	23	4.8	28.5	Red
	#6	3.7		6.6			31.5
	#8	4.3		6.6			31.5
	#10	5.3		8			33.5
	1/4	6.4		9.8			39.5
	5/16	8.4		11.6			39.5
	3/8	10.5		13.6			43
1.5~2.5mm² 16-14AWG	#6	3.7	2.3	6.6	23	5.8	31.5	Blue
	#8	4.3		6.6			31.5
	#10	5.3		8.5			33.5
	1/4	6.4		12			33.5
	5/16	8.4		12			39.5
	3/8	10.5		13.6			43
4~6mm²12-    10AWG	#8	4.3	3.4	7.2	23	6.8	35	Yellow
	#10	5.3		9.5			43
	1/4	6.4		12			43
	5/16	8.4		12			43
	3/8	10.5		15			43
