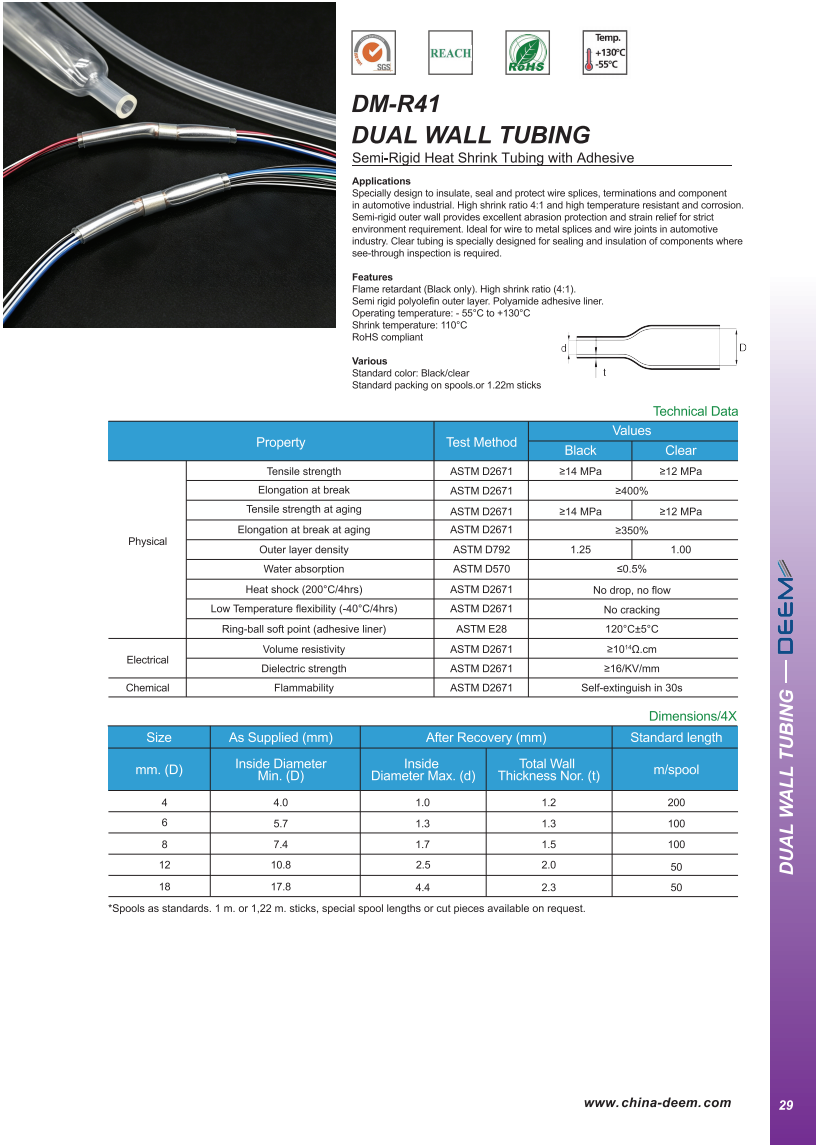

Applications
Specially design to insulate, seal and protect wire splices, terminations and component
in automotive industrial. High shrink ratio 4:1 and high temperature resistant and corrosion.
Semi-rigid outer wall provides excellent abrasion protection and strain relief for strict
environment requirement. Ideal for wire to metal splices and wire joints in automotive
industry. Clear tubing is specially designed for sealing and insulation of components where
see-through inspection is required.
Features
Flame retardant (Black only). High shrink ratio (4:1).
Semi rigid polyolefin outer layer. Polyamide adhesive liner.
Operating temperature: - 55°C to +130°C
Shrink temperature: 110°C
RoHS compliant
Various
Standard color: Black/clear
Standard packing on spools.or 1.22m sticks

Technical Data

Property		Test Method	Values
			Black	Clear
Physical	Tensile strength	ASTM D2671	≥14 MPa	≥12 MPa
	Elongation at break	ASTM D2671	2400%
	Tensile strength at aging	ASTM D2671	≥14 MPa	≥12 MPa
	Elongation at break at aging	ASTM D2671	≥350%
	Outer layer density	ASTM D792	1.25	1.00
	Water  absorption	ASTM D570	≤0.5%
	Heat   shock(200°C/4hrs)	ASTM D2671	No drop, no flow
	Low Temperature flexibility(-40°C/4hrs)	Min.1014 Ω·cm	No cracking
	Ring-ball soft point (adhesive liner)	ASTM E28	120℃+5℃
Electrical	Volume resistivity	ASTM D2671	≥1014 Ω·cm
	Dielectric strength	ASTM D2671	≥16/KV/mm
Chemical	Flammability	ASTM D2671	Self-extinguish in 30s

Dimensions

Size	As Supplied (mm)	After Recovery (mm)		Standard length
mm. (D)	Inside Diameter Min. (D)	Inside Diameter Max. (d)	Total Wall Thickness Nor.(t)	m/spool
4	4.0	φ2.5	1.2	200
6	5.7	φ3.0	1.3	100
8	7.4	1.7	1.5	100
12	10.8	2.5	2.0	50
18	17.8	4.4	2.3	50

*Spools as standards. 1 m. or 1,22 m. sticks, special spool lengths or cut pieces available on request.
