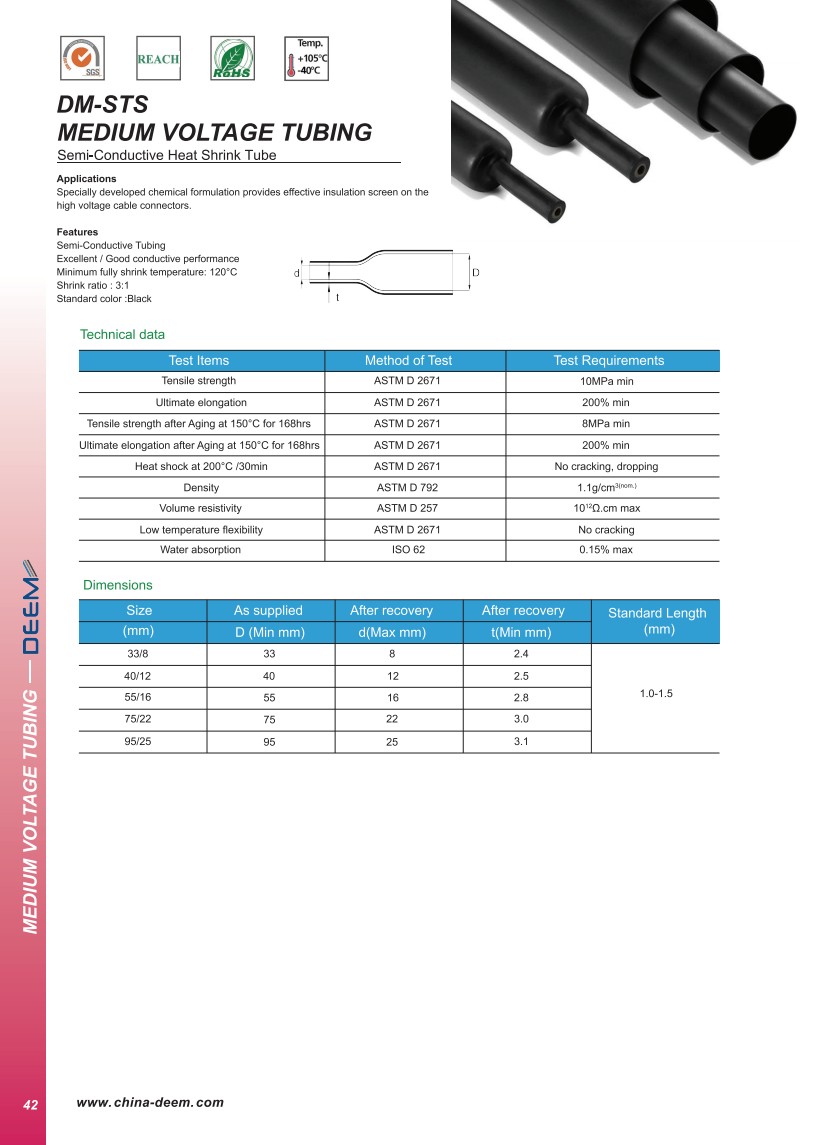

Semi-conductive heat shrink tube
- BrandDEEM
- TypeDM-STS
Applications
Specially developed chemical formulation provides effective insulation screen on thehigh voltage cable connectors
Features
Semi-conductive Tubing
Excellent / Good conductive performance
Minimum fully shrink temperature : 120℃
Shrink ratio : 3 : 1
Standard color : Black
Technical data
Dimensions
Test Items
Method of Test
Test Requirements
Tensile strength
ASTM D 2671
10MPa min
lltimate elongation
ASTM D 2671
200% min
Tensile strength after Aging at 150℃ for 168hrs
ASTM D 2671
8MPa min
Ultimate elongation after Aging at 150°C for 168hrs
ASTM D 2671
200% min
Heat shock at 200℃/30min
ASTM D 2671
No cracking, dropping
Density
ASTM D 792
1.1g/cm³(nom)
Volume resistivity
ASTM D 257
1012Ω.cm max
Low temperature flexibility
ASTM D 2671
No cracking
Water absorption
ISO 62
0.15% max
Size
As supplied
After recovery
After recovery
(mm)
D(Min mm)
d(Max mm)
t(Min mm)
33/8
33
8
2.4
1.0-1.5
40/12
40
12
2.5
55/16
55
16
2.8
75/22
75
22
3.0
95/25
95
25
3.1
