Applications
One piece design, it consists of transparent heat shrinkable sleeve and fluxed solder.
Provides insulation, inspection, strain relief and waterproof. Makes insulation easy and lowers the installed cost. Color hot-melt glue on two ends of heat shrinkable tube, it's very convenience to use the exact wire dimension.
Features
Shrinkage ratio 3:1
Waterproof for wiring splices
Easy control soldering process
High tensile strength
Transparent sleeve provides precise inspection
Operating temperature:
Working temperature: - 55°C~125°C
Minimum shrink temperature: 80°C
Starting temperature of solder melt: 138°C
Temperature of fully solder melt: 160°C

Technical data

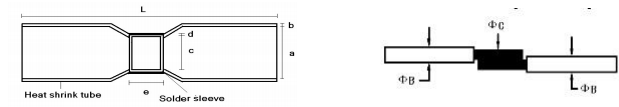

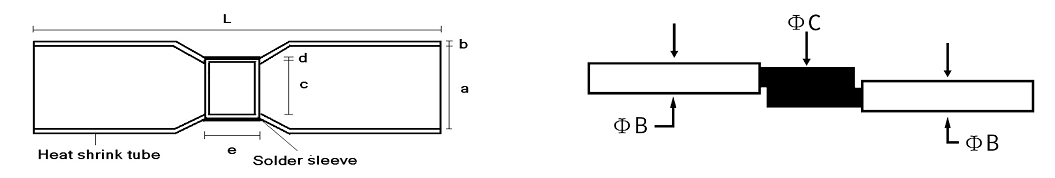

Dimensions

Part No	Standard Color	Product dimensions(mm)		Wire Dimensions(mm)		Cable Size
		A(min)	L(min)	B(min)	B and C(max)	C(min)	A.W.G(mm²)
SR01	Clear	1.7	26	1.0	1.7	0.76	26-24(0.25-0.34)
SR02	Red	2.7	40	1.4	2.7	1.2	22-18(0.5-1.0)
SR03	Blue	4.5	40	2.3	4.5	2.0	16-14(1.5-2.5)
SR04	Yellow	6.0	40	3.7	6.0	3.4	12-10(4.0-6.0)
