Applications

By reinforced steel wire ( ceramic rods , fiberglass rods ) , fusion tube andcrosslinked polyolefin composition , can rebuild the cladding of the fiber andcan provide good mechanical strength , in the joint guarantee good opticatransmission performance

Features

Operating temperature : -45℃ to + 100℃

One & Two ceramic rods are both available

Standard color : Transparent Colors

Technical data

Property	Test Method	Typical Data
Tensile strength	ASTMD2671	18MPa
Ultimate elongation	ASTMD2671	700%
Density	ISOR1183D	0.94g/cm³
Disruptive strength	ASTMD2671	25KV/mm
Volume Resistivity	IEC243	1015Ω.cm
Longitudinal change	ASTMD2671	±5%

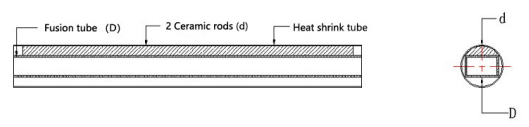

Dimensions

DF-ROP	Heat shrink tube(mm)	Fusion tube(mm)	Ceramic(mm)
	Length(mm)	Height* width(mm)	Width (mm)	Height (mm)
DF-ROP 4S	42±0.8	1.3*2.2	3.0±0.1	1.5±0.1
DF-ROP 4D	42±0.8	1.3*2.2	3.0±0.1	1.5±0.1
DF-ROP 6S	42±0.8	1.8*2.8	3.0±0.1	1.5±0.1
DF-ROP 6D	42±0.8	1.8*2.8	3.0±0.1	1.5±0.1
DF-ROP 8S	42±0.8	2.4*3.4	4.0±0.1	2.0±0.1
DF-ROP 8D	42±0.8	2.4*3.4	4.0±0.1	2.0±0.1
DF-ROP 12S	42±0.8	2.4*3.5	4.0±0.1	2.0±0.1
DF-ROP 12D	42±0.8	2.4*3.5	4.0±0.1	2.0±0.1

*Other lengths and sizes are available on request.
