Applications
Recommended for use both in open air and on underground power distribution cables with PVC, lead or XLPE sheets. Definitive recovery with the layer of spiral coated hot melt adhesive.
Features

Resistant to oxidation, ozone, UV radiation. Protects power cables up to 1000 V and telecommunication cables. Very easy to fit over cable end. Environment definitive watertight seal.

Material: thermally stabilized cross linked polyolefin, coated with special hot melt adhesive.

Various
Operating temperature: -55°C to +110°C
Minimum full recovery: 120 °C
Effectively offering protection against oxidation, ozone,
UV-radiation.
Coated with hot melt adhesive to ensure environment seal.
Standard color: Black.

Technical Data

Property	Test Method	Typical Data
Operating temperature	IEC 216	-55°C to+110℃
Tensile strength	ASTM D 638	>14 MPa
Elongation at break	ASTM D 638	>400%
Elongation at break after aging	150C/168 hrs.	>300%
Density	ASTM D 792	1.05
Flammability	/	Flammable
Dielectric strength	IEC 243	>15 kV/mm
Volume resistance	IEC 93	>1014Ω.cm

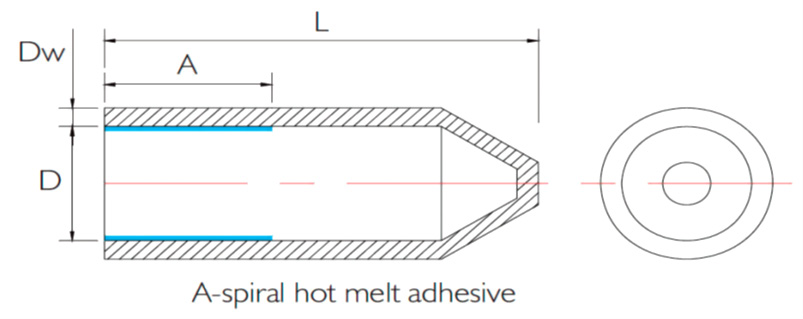

Dimensions

Size	As Supplied (mm)	After Recovery(mm)				Cable Diameter (mm)
(D)	D(min)	D(max)	A(±10%)	L(±10%)	Dw(±5%)
Standard length end caps
12/4	12	4.0	15	40	2.6	4-10
14/5	14	5.0	18	45	2.6	5-12
20/6	20	6.0	25	55	2.8	6-16
25/8.5	25	8.5	30	68	2.8	10-20
35/16	35	16.0	35	83	3.3	17-30
40/15	40	15.0	40	83	3.3	18-32
55/26	55	26.0	50	103	3.5	28-48
75/36	75	36.0	55	120	4.0	45-68
100/52	100	52.0	70	140	4.0	55-90
120/60	120	60.0	70	150	4.0	65-110
145/60	145	60.0	70	150	4.0	70-130
160/82	160	82.0	70	150	4.0	90-150
200/90	200	90.0	70	160	4.2	100-180
