Applications

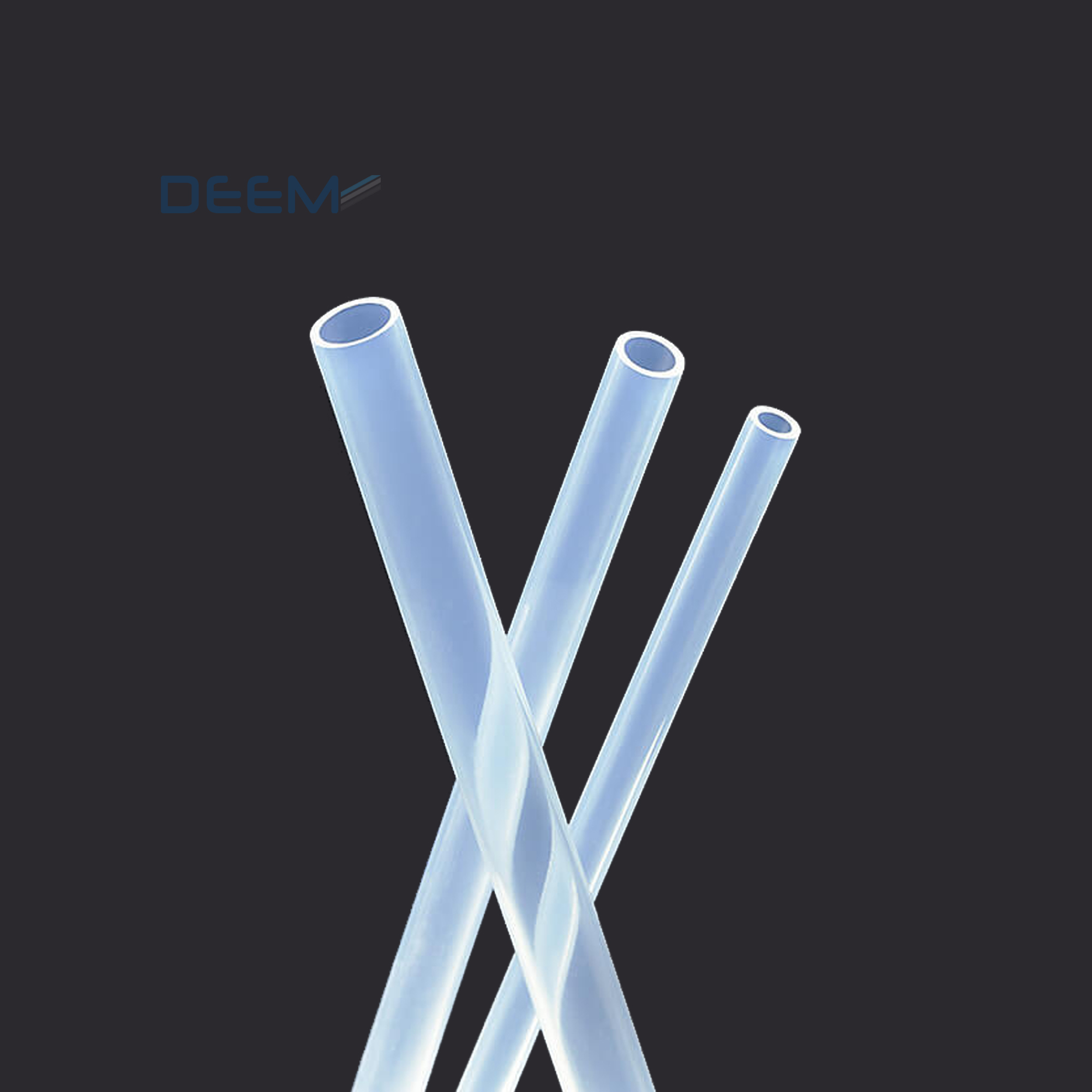

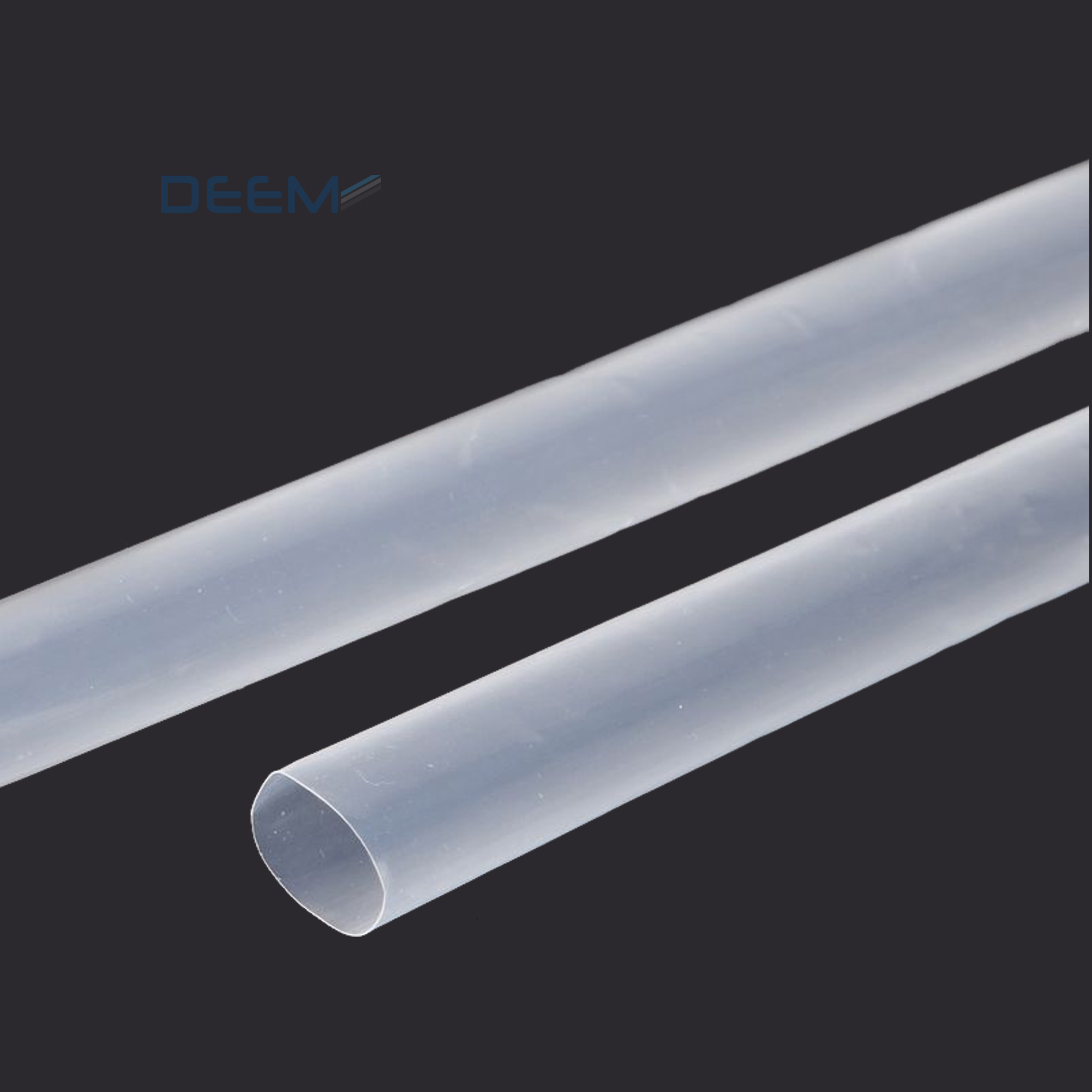

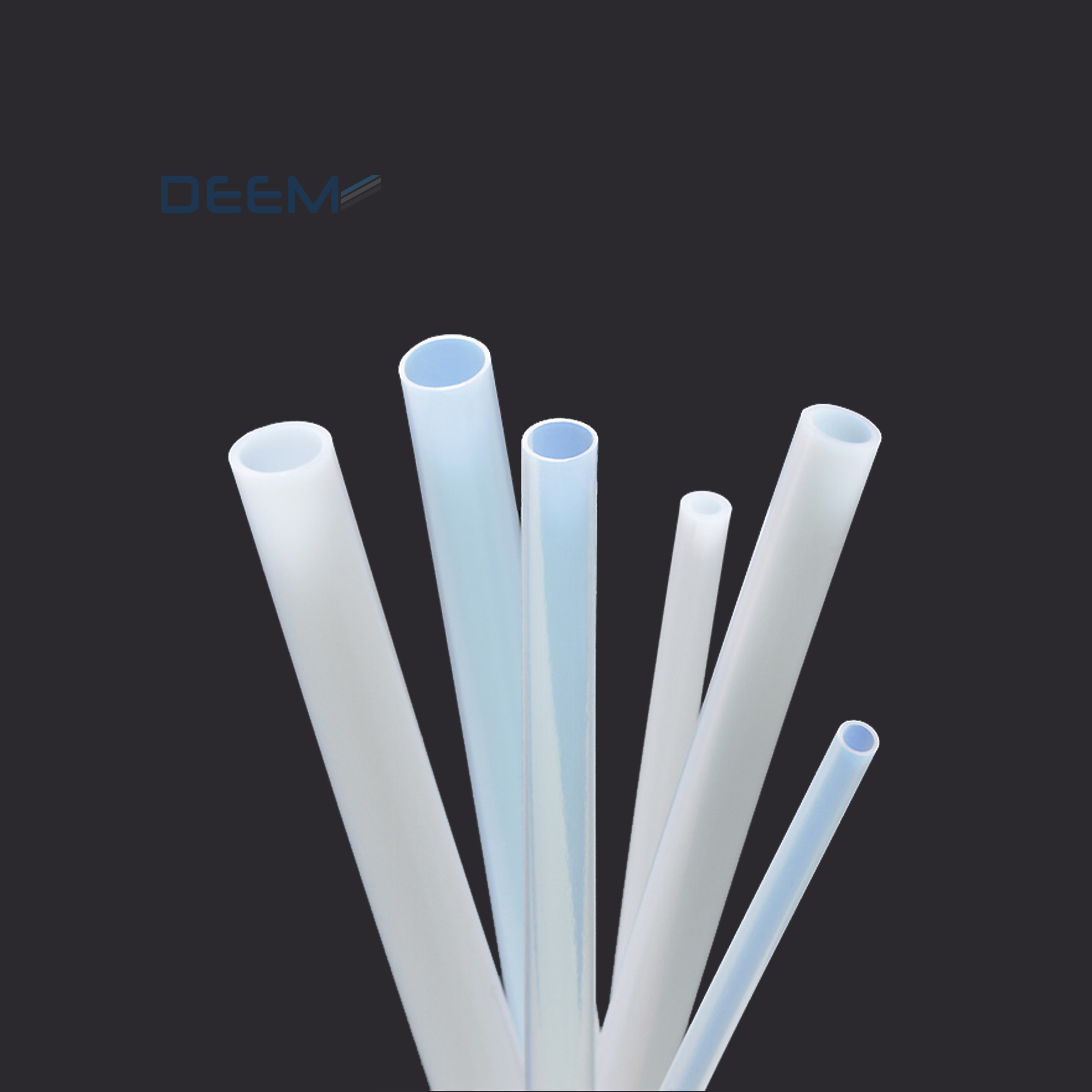

This Teflon® based tubing is designed for protecting applications in extreme electrical,
or mechanical environments. Thanks to its compoundit has exceptional friction resistance
and withstands even aggressive chemical solvents.
Features
Operating temperature: -65°C to +260°C
Minimum full recovery temperature: 350°C
Meet: SAE-AMS-DTL-23053/12
Standard color: Clear (natural).
Shrink Ratio: 1.7:1 and 4:1(available on request)
Technical Data

Property	Test Method	Typical Data
Specific gravity	ASTM D 792	2.30
Tensile strength	ASTM D 2671	≥17.3 MPa
Elongation at break	ASTM D 2671	≥200%
Heat Shock(400/4hrs.)	ASTM D 2671	No cracking or dropping
Cold bend test(-65C/4hrs.)	ASTM D 2671	No cracking
Volume resistance	ASTM D 2671	≥1018Ω.cm
Dielectric strength	ASTM D 2671	≥34kV/mm
Copper Corrosion	UL 224	Pass
Flammability	ASTM D 2671	Self-extinguish
Fluid resistance	SAE-AMS-DTL-23053/12	Excellent
Water absorption	ASTM D 570	0.1 max

Dimensions/1.7X

As Supplied (mm)	After Recovery (mm)		Standard length m/spool
Inside Diameter Min. (D)	Inside Diameter max. (d)	Wall Thickness Nominal,(t)
2.0±0.2	≤0.5	0.30±0.05	200
2.5±0.2	≤0.65	0.30±0.05	200
3.0±0.2	≤0.8	0.30±0.05	200
3.5±0.2	≤0.9	0.30±0.05	200
4.0±0.3	≤1.0	0.30±0.05	200
4.5±0.3	≤1.15	0.30±0.05	100
5.0±0.3	≤1.25	0.30±0.05	100
6.0±0.3	≤1.5	0.30±0.05	100
7.0±0.3	≤1.75	0.30±0.05	100
8.0±0.3	≤2.0	0.35±0.05	100
9.0±0.3	≤2.25	0.35±0.05	100
