Cold Shrink End Caps

2025/9/1 viewers

BrandDEEM
TypeDM-EP

Introduction

Features / Applications

DM-EP is a EPDM rubber cold shrink end caps which are factory expanded and slipped over onto a removable core. DM-EP offers a tight seal and a good mechanical protection for cable ends. No tools, mastics or tapes are required. Easy installation and dismantling.DM-EP is suitable for protect cables, pipes and other cylindrical objects from exposure to moisture, contamination, corrosion, ozone, ultra-violet radiation, physical contact and other environmental hazards. Both for open-air and underground application.

Characteristics

-40 °C to +150 °C

Ratio 2:1

EPDM rubber cold shrink end caps

Standard color: Black.

Technical data

Property	Values	Test Methods
Working temperature	-40℃ to+150°C	-
Tensile strength	≥10 MPa	ASTM D 415-75
Elongation at break	≥600%	ASTM D 415-75
Tear Strength	28,3 kN/m	ASTM D 624
Fungus Resistance	No Growth	ASTM G 21
Moisture Absorption	3.0% wt.Gain	ASTM D 792

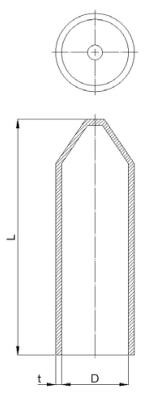

Dimensions

Spec	As supplied (mm)	After recovery(mm)		Standard length (mm) (L)
	As supplied (mm)	After recovery(mm)
	Inside Diameter	Inside Diameter	Wall Thickness
	Min. (D)	Max. (d)	Min. (t)
DM-EP- 20	φ20±2	12	2.5	100±5
DM-EP-28	φ28±2	16	2.5	100±5
DM-EP-47	φ47±2	23	2.6	100±5
DM-EP-56	φ56±2	23	2.6	100±5
DM-EP-80	φ80±2	46	2.6	100±5
