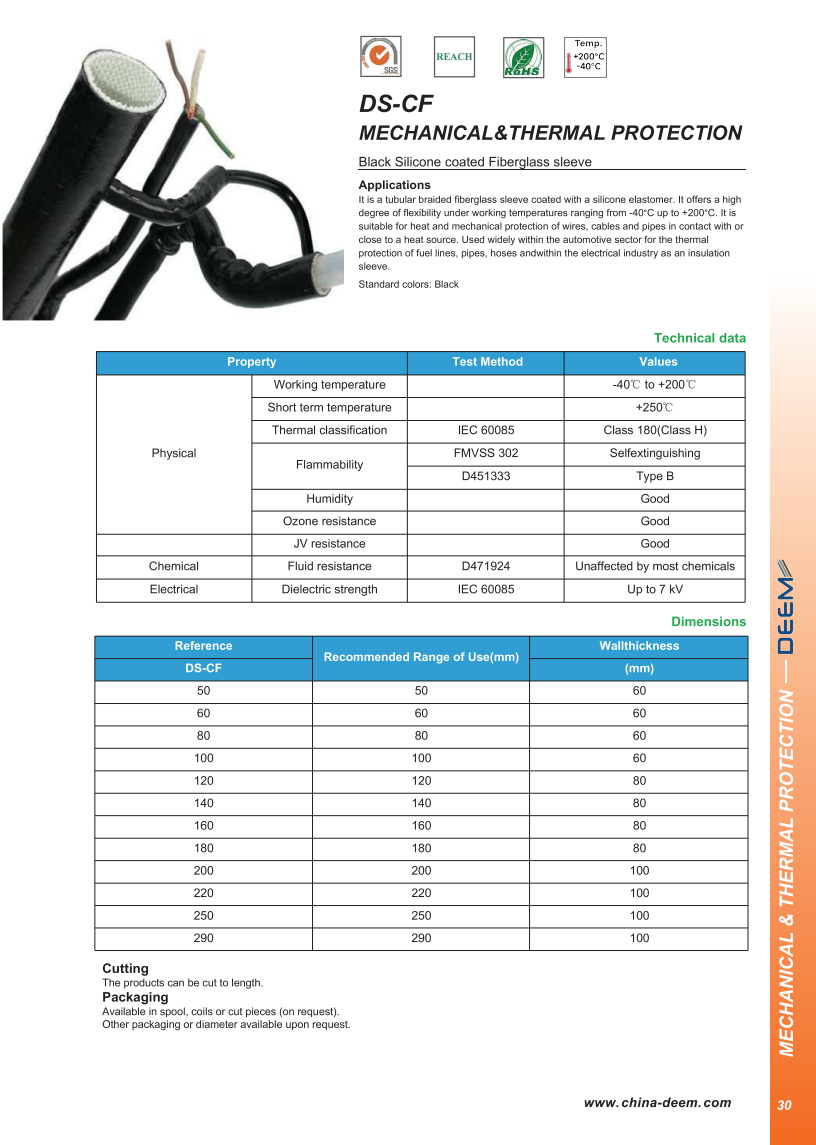

Applications
It is a tubular braided fiberglass sleeve coated with a silicone elastomer. It offers a high degree of flexibility under working temperatures ranging from -40°C up to +200°C. It is suitable for heat and mechanical protection of wires, cables and pipes in contact with or close to a heat source. Used widely within the automotive sector for the thermal protection of fuel lines, pipes, hoses andwithin the electrical industry as an insulation sleeve.
Standard colors: Black

Technical Data

Property		Test Method	Values
Physical	Working temperature		-40℃ to+200℃
	Short term temperature		+250℃
	Thermal classification	IEC 60085	Class 180(Class H)
	Flammability	FMVSS 302	Selfextinguishing
		D451333	Type B
	Humidity		Good
	Ozone resistance		Good
	JV resistance		Good
Chemical	Fluid resistance	D471924	Unaffected by most chemicals
Electrical	Dielectric strength	IEC 60085	Up to 7 kV

Dimensions

Reference	Recommended Range of Use(mm)	Wallthickness
DS-CF		(mm)
50	50	60
60	60	60
80	80	60
100	100	60
120	120	80
140	140	80
160	160	80
180	180	80
200	200	100
220	220	100
250	250	100
290	290	100

Cutting
The products can be cut to length.

Packaging
Available in spool, coils or cut pieces (on request).
Other packaging or diameter available upon request.
