PVDF Heat shrink crimp seal connector/butt splice
- BrandDEEM
- TypeDC-SC(436)

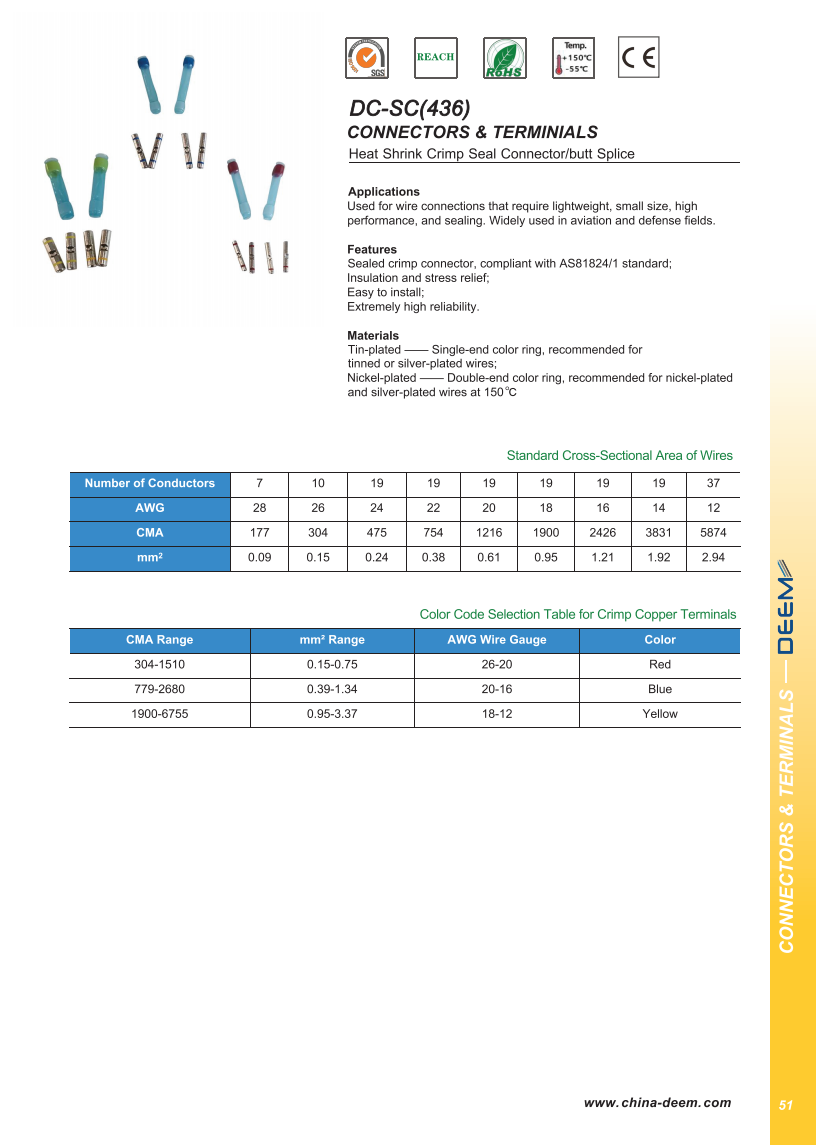

Used for wire connections that require lightweight, small size, high performance, and sealing. Widely used in aviation and defense fields.
Features
Sealed crimp connector, compliant with AS81824/1 standard;
Insulation and stress relief;
Easy to install;
Extremely high reliability.
Materials
Nickel-plated —— Double-end color ring, recommended for nickel-plated or silver-plated wires at 150℃ and above.
Standard Cross-Sectional Area of Wires
|
Number of Conductors |
7 |
10 |
19 |
19 |
19 |
19 |
19 |
19 |
37 |
|
AWG |
28 |
26 |
24 |
22 |
20 |
18 |
16 |
14 |
12 |
|
CMA |
177 |
304 |
475 |
754 |
1216 |
1900 |
2426 |
3831 |
5874 |
|
mm2 |
0.09 |
0.15 |
0.24 |
0.38 |
0.61 |
0.95 |
1.21 |
1.92 |
2.94 |
|
CMA Range |
mm² Range |
AWG Wire Gauge |
Color |
|
304-1510 |
0.15-0.75 |
26-20 |
Red |
|
779-2680 |
0.39-1.34 |
20-16 |
Blue |
|
1900-6755 |
0.95-3.37 |
18-12 |
Yellow |
|

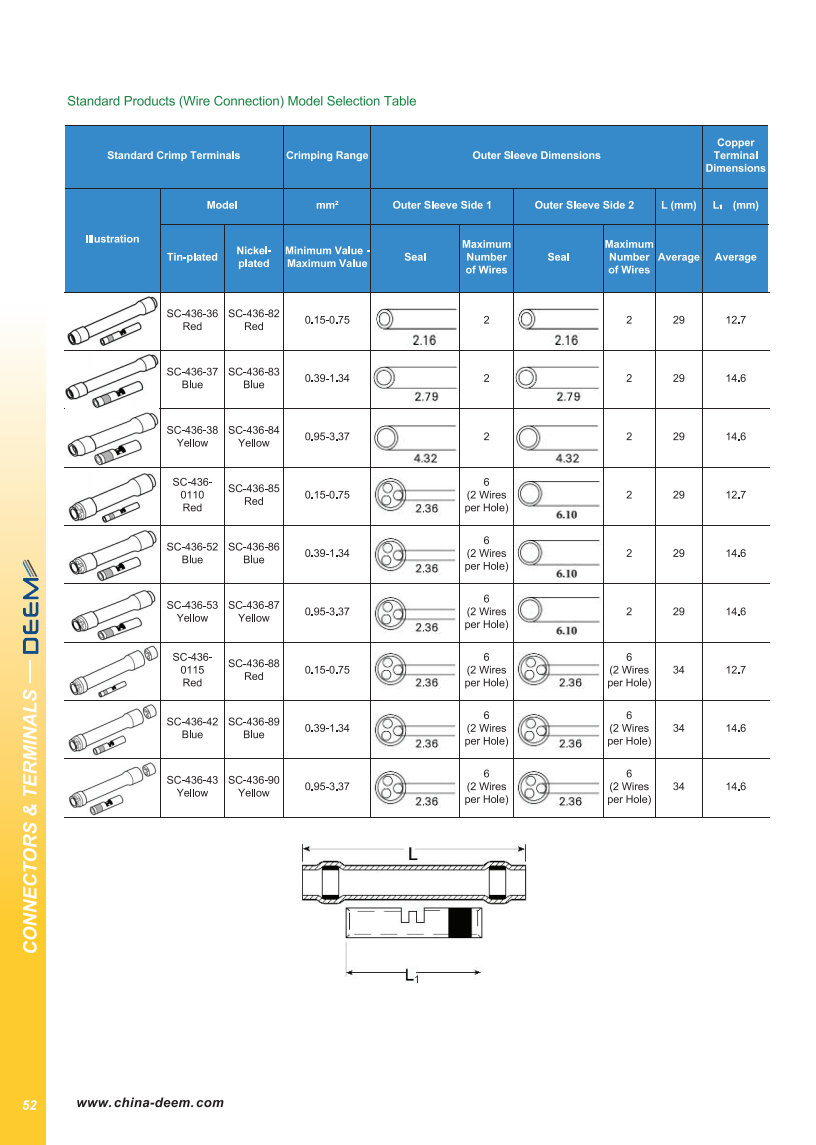

Standard Crimp Terminals |
Crimping Range |
Outer Sleeve Dimensions |
Copper Terminal Dimensions |
||||||
|
Illustration |
Model |
mm² |
Outer Sleeve Side 1 |
Outer Sleeve Side 2 |
L (mm) |
L₁ (mm) |
|||
|
Tin-plated |
Nickel-plated |
Minimum Value - Maximum Value |
Seal |
Maximum Number of Wires |
Seal |
Maximum Number of Wires |
Average |
Average |
|
|
|
SC-436-36 Red |
SC-436-82 Red |
0.15-0.75 |
|
2 |
|
2 |
29 |
12.7 |
|
|
SC-436-37 Blue |
SC-436-83 Blue |
0.39-1.34 |
|
2 |
|
2 |
29 |
14.6 |
|
|
SC-436-38 Yellow |
SC-436-84 Yellow |
0.95-3.37 |
|
2 |
|
2 |
29 |
14.6 |
|
|
SC-436-0110 Red |
SC-436-85 Red |
0.15-0.75 |
|
6 (2 Wires per Hole) |
|
2 |
29 |
12.7 |
|
|
SC-436-52 Blue |
SC-436-86 Blue |
0.39-1.34 |
|
6 (2 Wires per Hole) |
|
2 |
29 |
14.6 |
|
|
SC-436-53 Yellow |
SC-436-87 Yellow |
0.95-3.37 |
|
6 (2 Wires per Hole) |
|
2 |
29 |
14.6 |
|
|
SC-436-0115 Red |
SC-436-88 Red |
0.15-0.75 |
|
6 (2 Wires per Hole) |
|
6 (2 Wires per Hole) |
34 |
12.7 |
|
|
SC-436-42 Blue |
SC-436-89 Blue |
0.39-1.34 |
|
6 (2 Wires per Hole) |
|
6 (2 Wires per Hole) |
34 |
14.6 |
|
|
SC-436-43 Yellow |
SC-436-90 Yellow |
0.95-3.37 |
|
6 (2 Wires per Hole) |
|
6 (2 Wires per Hole) |
34 |
14.6 |
