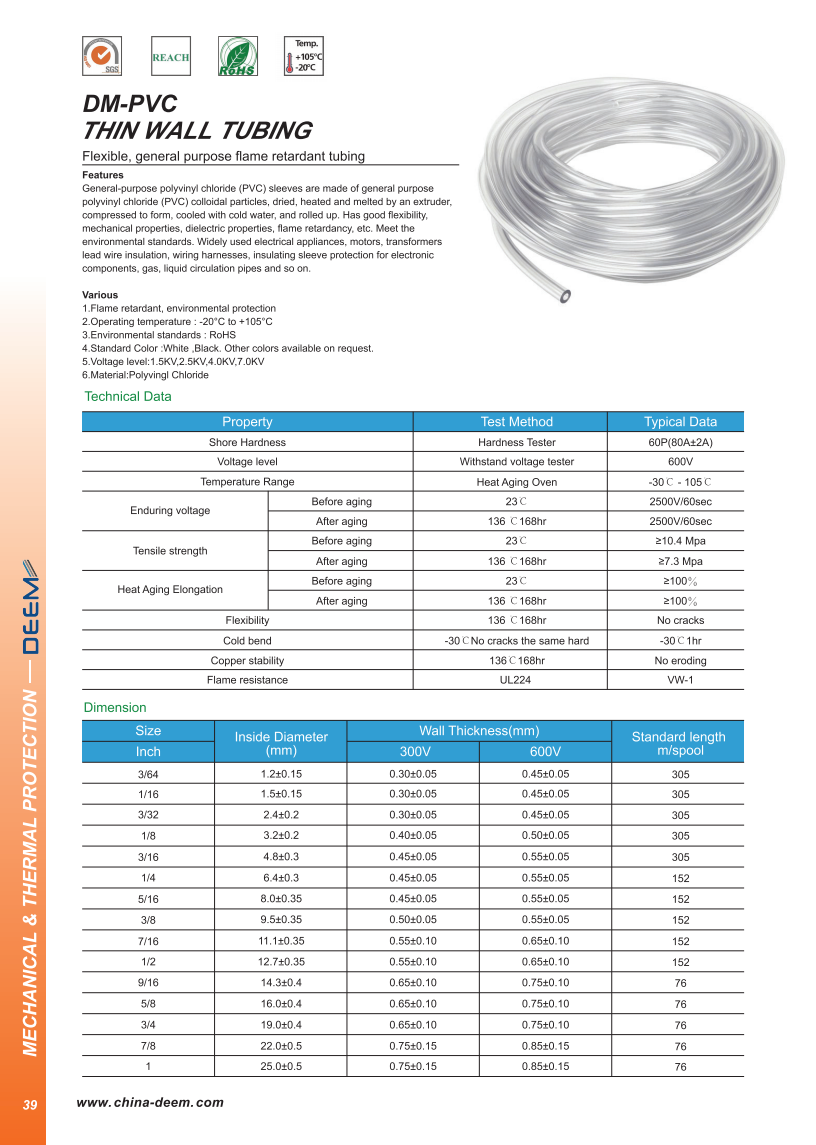

Features
General-purpose polyvinyl chloride (PVC) sleeves are made of general purpose polyvinyl chloride (PVC) colloidal particles, dried, heated and melted by an extruder, compressed to form, cooled with cold water, and rolled up. Has good flexibility, mechanical properties, dielectric properties, flame retardancy, etc. Meet the
environmental standards. Widely used electrical appliances, motors, transformers lead wire insulation, wiring harnesses, insulating sleeve protection for electronic components, gas, liquid circulation pipes and so on.
Various
1 .Flame retardant, environmental protection
2.Operating temperature : -20®C to +105°C
3. Environ mental standards : RoHS
4.Standard Color:White,Black. Other colors available on request.
5.Material:PolyvingI Chloride
Technical Data

Property		Test Method	Typical Data
Shore Hardness		Hardness Tester	60P(80A±2A)
Voltage level		Withstand voltage tester	600V
Temperature Range		Heat Aging Oven	-30℃-105℃
Enduring voltage	Before aging	23℃	2500V/60sec
	After aging	136 C168hr	2500V/60sec
Tensile strength	Before aging	23C	≥10.4 Mpa
	After aging	136 ℃168hr	≥7.3 Mpa
Heat Aging Elongation	Before aging	23℃	≥100%
	After aging	136 C168hr	≥100%
Flexibility		136 ℃168hr	No cracks
Cold bend		-30CNo cracks the same hard	-30℃ 1hr
Copper stability		136℃168hr	No eroding
Flame resistance		UL224	VW-1

Dimensions

Size	Inside Diameter (mm)	Wall Thickness(mm)		Standard length m/spool
Inch		300V	600V
3/64	1.2±0.15	0.30±0.05	0.45±0.05	305
1/16	1.5±0.15	0.30±0.05	0.45±0.05	305
3/32	2.4±0.2	0.30±0.05	0.45±0.05	305
1/8	3.2±0.2	0.40±0.05	0.50±0.05	305
3/16	4.8±0.3	0.45±0.05	0.55±0.05	305
1/4	6.4±0.3	0.45±0.05	0.55±0.05	152
5/16	8.0±0.35	0.45±0.05	0.55±0.05	152
3/8	9.5±0.35	0.50±0.05	0.55±0.05	152
7/16	11.1±0.35	0.55±0.10	0.65±0.10	152
1/2	12.7±0.35	0.55±0.10	0.65±0.10	152
9/16	14.3±0.4	0.65±0.10	0.75±0.10	76
5/8	16.0±0.4	0.65±0.10	0.75±0.10	76
3/4	19.0±0.4	0.65±0.10	0.75±0.10	76
7/8	22.0±0.5	0.75±0.15	0.85±0.15	76
1	25.0±0.5	0.75±0.15	0.85±0.15	76
