Applications
Most commonly used over wire harnesses, cable assemblies, tubing and hose to provide a tough, durable protection and reduce noisy in the automotive, railway , machinery industry etc.
Features
weaved by Polyester monofilament and polyester multifilament, this special structure offers excellent reducing for noise .Side-entry design makes it easy to install, remove and reuse for wire harnesses or cables ,especially where it is installed in hard to reach areas such as door panels or dashboards. This kind of wrap achieves the same protection function as other common expandable braided products.
Technical Data
Dimensions
Material
PET monofilament and multifilament
Operating range
-50℃±150℃
Melt point
240℃±10℃
Flame Retardant Rating
UL94-V2

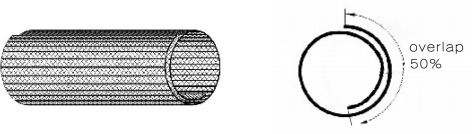

Overlap Ratio
25%~50%
Certificate
ROHS,Halogen free
*special spool lengths or cut pieces available on request.
