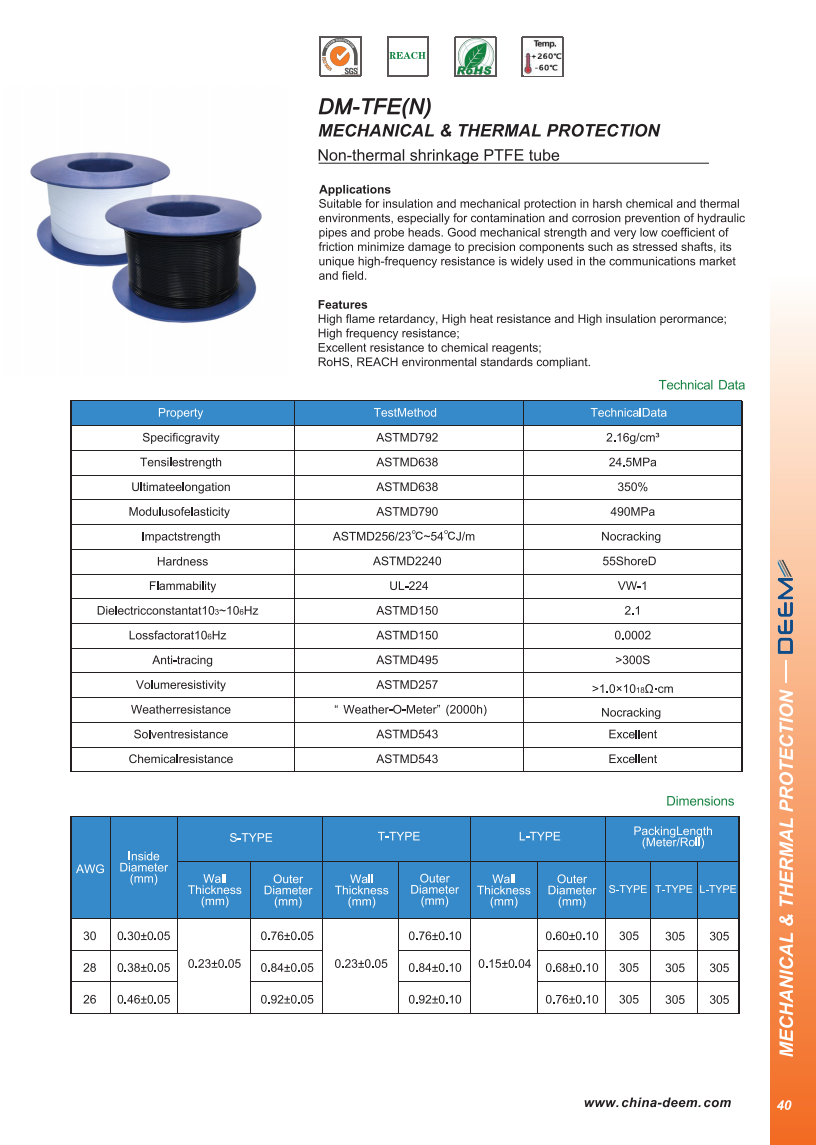

Non-thermal shrinkage PTFE tube
- BrandDEEM
- TypeDM-TFE(N)
Suitable for insulation and mechanical protection in harsh chemical and thermal environments, especially for contamination and corrosion prevention of hydraulic pipes and probe heads. Good mechanical strength and very low coefficient of friction minimize damage to precision components such as stressed shafts, its unique high-frequency resistance is widely used in the communications market and field.
High flame retardancy, High heat resistance and High insulation perormance;
High frequency resistance;
Excellent resistance to chemical reagents;
RoHS, REACH environmental standards compliant.
Technical Data
Property
Test Method
Technical Data
Specific gravity
ASTM D792
2.16g/cm³
Tensile strength
ASTM D638
24.5MPa
Ultimate elongation
ASTM D638
350%
Modulus of elasticity
ASTM D790
490MPa
Impact strength
ASTM D256 / 23℃~54℃J/m
No cracking
Hardness
ASTM D2240
55 Shore D
Flammability
UL-224
VW-1
Dielectric constant at 103~106Hz
ASTM D150
2.1
Loss factor at 106Hz
ASTM D150
0.0002
Anti-tracing
ASTM D495
>300S
Volume resistivity
ASTM D257
>1.0×1018Ω·cm
Weather resistance
“Weather-O-Meter” (2000h)
No cracking
Solvent resistance
ASTM D543
Excellent
Chemical resistance
ASTM D543
Excellent
|

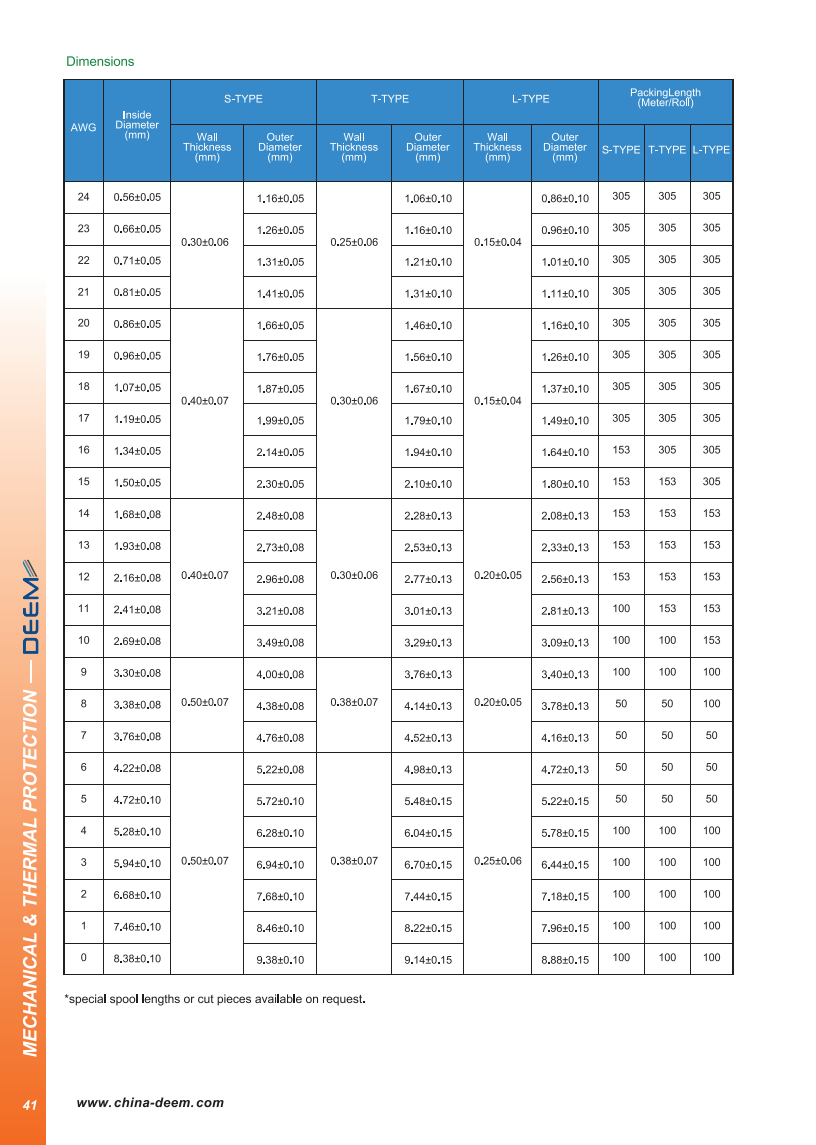

AWG |
Inside Diameter (mm) |
S-TYPE |
T-TYPE |
L-TYPE |
Packing Length (Meter/Roll) |
|||||
|
Wall Thickness (mm) |
Outer Diameter (mm) |
Wall Thickness (mm) |
Outer Diameter (mm) |
Wall Thickness (mm) |
Outer Diameter (mm) |
S-TYPE |
T-TYPE |
L-TYPE |
||
|
30 |
0.30±0.05 |
0.23±0.05 |
0.76±0.05 |
0.23±0.05 |
0.76±0.10 |
0.15±0.04 |
0.60±0.10 |
305 |
305 |
305 |
|
28 |
0.38±0.05 |
0.84±0.05 |
0.84±0.10 |
0.68±0.10 |
305 |
305 |
305 |
|||
|
26 |
0.46±0.05 |
0.92±0.05 |
0.92±0.10 |
0.76±0.10 |
305 |
305 |
305 |
|||
|
24 |
0.56±0.05 |
0.30±0.06 |
1.16±0.05 |
0.25±0.06 |
1.06±0.10 |
0.15±0.04 |
0.86±0.10 |
305 |
305 |
305 |
|
23 |
0.66±0.05 |
1.26±0.05 |
1.16±0.10 |
0.96±0.10 |
305 |
305 |
305 |
|||
|
22 |
0.71±0.05 |
1.31±0.05 |
1.21±0.10 |
1.01±0.10 |
305 |
305 |
305 |
|||
|
21 |
0.81±0.05 |
1.41±0.05 |
1.31±0.10 |
1.11±0.10 |
305 |
305 |
305 |
|||
|
20 |
0.86±0.05 |
0.40±0.07 |
1.66±0.05 |
0.30±0.06 |
1.46±0.10 |
0.15±0.04 |
1.16±0.10 |
305 |
305 |
305 |
|
19 |
0.96±0.05 |
1.76±0.05 |
1.56±0.10 |
1.26±0.10 |
305 |
305 |
305 |
|||
|
18 |
1.07±0.05 |
1.87±0.05 |
1.67±0.10 |
1.37±0.10 |
305 |
305 |
305 |
|||
|
17 |
1.19±0.05 |
1.99±0.05 |
1.79±0.10 |
1.49±0.10 |
305 |
305 |
305 |
|||
|
16 |
1.34±0.05 |
2.14±0.05 |
1.94±0.10 |
1.64±0.10 |
153 |
305 |
305 |
|||
|
15 |
1.50±0.05 |
2.30±0.05 |
2.10±0.10 |
1.80±0.10 |
153 |
153 |
305 |
|||
|
14 |
1.68±0.08 |
0.40±0.07 |
2.48±0.08 |
0.30±0.06 |
2.28±0.13 |
0.20±0.05 |
2.08±0.13 |
153 |
153 |
153 |
|
13 |
1.93±0.08 |
2.73±0.08 |
2.53±0.13 |
2.33±0.13 |
153 |
153 |
153 |
|||
|
12 |
2.16±0.08 |
2.96±0.08 |
2.77±0.13 |
2.56±0.13 |
153 |
153 |
153 |
|||
|
11 |
2.41±0.08 |
3.21±0.08 |
3.01±0.13 |
2.81±0.13 |
100 |
153 |
153 |
|||
|
10 |
2.69±0.08 |
3.49±0.08 |
3.29±0.13 |
3.09±0.13 |
100 |
100 |
153 |
|||
|
9 |
3.30±0.08 |
0.50±0.07 |
4.00±0.08 |
0.38±0.07 |
3.76±0.13 |
0.20±0.05 |
3.40±0.13 |
100 |
100 |
100 |
|
8 |
3.38±0.08 |
4.38±0.08 |
4.14±0.13 |
3.78±0.13 |
50 |
50 |
100 |
|||
|
7 |
3.76±0.08 |
4.76±0.08 |
4.52±0.13 |
4.16±0.13 |
50 |
50 |
50 |
|||
|
6 |
4.22±0.08 |
0.50±0.07 |
5.22±0.08 |
0.38±0.07 |
4.98±0.13 |
0.25±0.06 |
4.72±0.13 |
50 |
50 |
50 |
|
5 |
4.72±0.10 |
5.72±0.10 |
5.48±0.15 |
5.22±0.15 |
50 |
50 |
50 |
|||
|
4 |
5.28±0.10 |
6.28±0.10 |
6.04±0.15 |
5.78±0.15 |
100 |
100 |
100 |
|||
|
3 |
5.94±0.10 |
6.94±0.10 |
6.70±0.15 |
6.44±0.15 |
100 |
100 |
100 |
|||
|
2 |
6.68±0.10 |
7.68±0.10 |
7.44±0.15 |
7.18±0.15 |
100 |
100 |
100 |
|||
|
1 |
7.46±0.10 |
8.46±0.10 |
8.22±0.15 |
7.96±0.15 |
100 |
100 |
100 |
|||
|
0 |
8.38±0.10 |
9.38±0.10 |
9.14±0.15 |
8.88±0.15 |
100 |
100 |
100 |
|||
